BMW E34 Toyota 1JZGTE Twin Turbo Heart Transplant

Due to heart failure of the original BMW M50B20 (520i) engine and the extremely costly experience of maintaining a Bavarian heart with original BMW parts for the past 2 years or so. As the cost of a used BMW M50B25 was very expensive and likely to cost the same to maintain, I decided to transplant a more reliable Japanese heart into my beloved BMW. I know, I know, BMW purist all over the world will be moaning about purity etc, etc. but hey, its my car and 280hp and Toyota reliability doesn't sound so bad to me after blowing a fortune maintaining my original BMW engine.

Enough about philosophy and on with the show....

BMW M50B20 (520i). Before:

Toyota 1JZ-GTE Twin Turbo. After:

The journey....

A long time ago, in a galaxy far far away.....

Wait, wrong story. I bought the BMW E34 520i in early 2007 and have tried my best to keep to its German heritage by replacing and repairing the car with only original BMW parts. I had just spend a small fortune (to me at least) to fully refurbish the gearbox (which was giving me problems) with the intention of keeping the car in stock condition for as long as possible. Unfortunately, fate had other ideas and my M50B20 engine decided to blow its top and thought mixing engine oil and coolant together would be a good idea.

This was the last straw and after finding out that a good condition M50B20 was difficult to come by and that the more readily available M50B25 (from a 525i) would cost a small fortune (to me at least), I decided that it was time for a change. After much thought and research, I decided to go with the Toyota 1JZ-GTE Twin Turbo as the engine (or halfcut as we call them in Malaysia) were about a third of the price of the BMW and after factoring in the massive amount of labor and fabrication to install a Toyota engine into a BMW, the total cost was still quite similar.

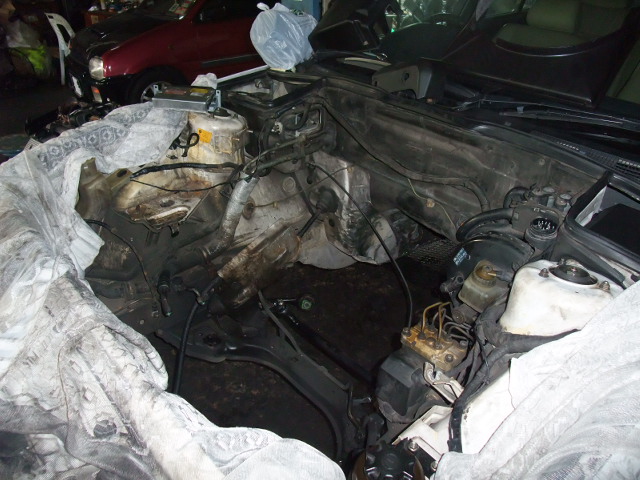

So a date was scheduled for the open heart surgery and the car was trailered to the operating theater and the offending item was removed.


The oil sump of the 'new' engine had to be modified to fit the original BMW engine bay.


The new heart being fitted.
Toyota? Yamaha?
Custom engine mountings being fabricated.

Toyota 4-speed automatic.
Intercooler. I went with a black 'stock' looking intercooler as I did not want to attract any unwanted attention.
Engine installed. Now the hard part, wiring.

The battery also had to be relocated from the engine bay to under the rear seat. Most of the E34's had their battery in this location but for some reason, mine was in the engine bay.

While the car was in for surgery, I decided to get the wheels repainted to an anthracite grey.

I also custom fabricated a panel for the boost gauge and turbo timer. Finished off with a 3M Carbon-Fiber sticker.

One of the requirements I had for the transplant was that I wanted the engine bay to look as 'stock' as possible, like it would have looked if BMW and Toyota decided to get married and have a child. As such, a lot of care was given especially to the wiring and the use of the original Toyota air intake assembly.

Overall, I am really happy with the results and the 280hp that came with it.

Some pictures after surgery.


The Toyota ECU is located in the same place as the stock BMW ECU.
The original rubber seals were reused to ensure the ECU is sealed off and the original routing for the wiring was reused.

The complete Toyota air intake assembly including the cold air intake snorkel.
The front of the engine bay had to be modified slightly to get the cold air intake to fit.
The original BMW brake master cylinder could not fit and was replaced with the original Toyota version.
The front mounted intercooler.


Stock looking front end.

The standard 520i exhaust was used for the complete 'stock' look. I didn't want to go for a custom made exhaust as I wanted it to look and sound like a stock BMW 520i.

The completed engine bay.

The original BMW gear shift was reused and the panel for the boost gauge and turbo timer installed.

Closeup of the 3M Carbon Fiber sticker.

The original BMW instrument cluster was also reused and everything works expect the meter below the rev counter used to calculate the MPG.

Some exterior shots of the car with the wheels. For a full description of the detailing work carried out check out my post on my other blog:
http://prodetailing.blogspot.com/2009/11/bmw-e34-post-heart-transplant-detail.html









The new Japanese heart is smoother and definitely much, much more powerful than the original German heart but what I'm really hoping for is that it will be more reliable also.

My wallet needs a break...... or I'll be the one needing a heart transplant soon.

Just updated another post with some technical information about the 1JZ:
http://theseech.blogspot.com/2009/12/bmw-e34-toyota-1jz-gte-transplant-guide.html
